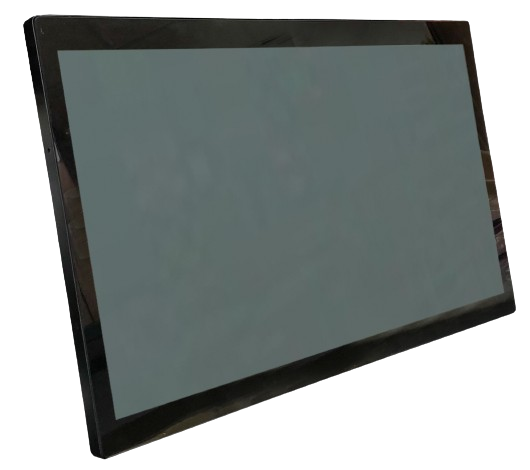

27" 觸控電腦 ( intel Core i3/i5/i7 )
工業平板電腦
產品規格
Model name | 27" Touch PC ( intel Core i3/i5/i7 ) | |
---|---|---|
CPU | Intel® Skylake, Kaby Lake Celeron/Core I series CPU | |
Memory | DDR4 SO-DIMM x2, Max. 32G | |
Storage | SATA x1, mSATA/mPCle x1 | |
GPU Chip | Intel® HD Graphics | |
Sound Chip | Realtek ALC662 Audio CODEC | |
Network | Intel Gigabit LAN, 2 * RJ45 ports | |
Panel Process | VA Mode, Normally Black | |
Display Size | 27 inch | |
Visible Area | 597.6×336.2 mm | |
Resolution | 1920x1080 (FHD) | |
Color Depth | 16.7M Colors | |
Brightness (nits) | 300 / (Optional) 1000 / (Optional) 1500 nits | |
Contrast Ratio | 3000:1 | |
Pixel Pitch | 264x264 um | |
Response Time | 5 msec. | |
Viewing Angle | 178°/178° | |
Backlight | LED (white LED) | |
min. Panel lifetime | >30000 hours | |
Operating Temp. | 0°-50°C | |
Storage Temp. | -20°-60°C | |
Touch Technology | Projected Capacitive | |
Allowed Touch Points | 10 points | |
Thickness of Cover Lens | 2.0±0.2mm | |
Hardness of Cover Lens | 7H | |
Accuracy | 99.00% | |
Transparency | ≥ 87% | |
IK Ratings | IK07 | |
產品描述
27吋寬螢幕,1920×1080 (FHD) 解析度
★ VA 廣視角製程 (178°/178°)
★ Intel® Skylake/ Kaby Lake CPU
★ DDR4 8G RAM 最大支援 32G
★ Serial ATAIIIx1, mSATA/mPCIe x1
★ 全平面投射式電容觸控,強化玻璃硬度 7H
★ 10 點 觸控 支援主動式繪圖級觸控筆
★ 金屬外殼,搭配多樣化的安裝支架選 項
★ 台灣製造,三年保固
★ 最大亮度可達 1500nits ,適用室外環境(選配)
★ 抗菌膜/抗眩光/反射/指紋/防窺等保護膜(選配)
