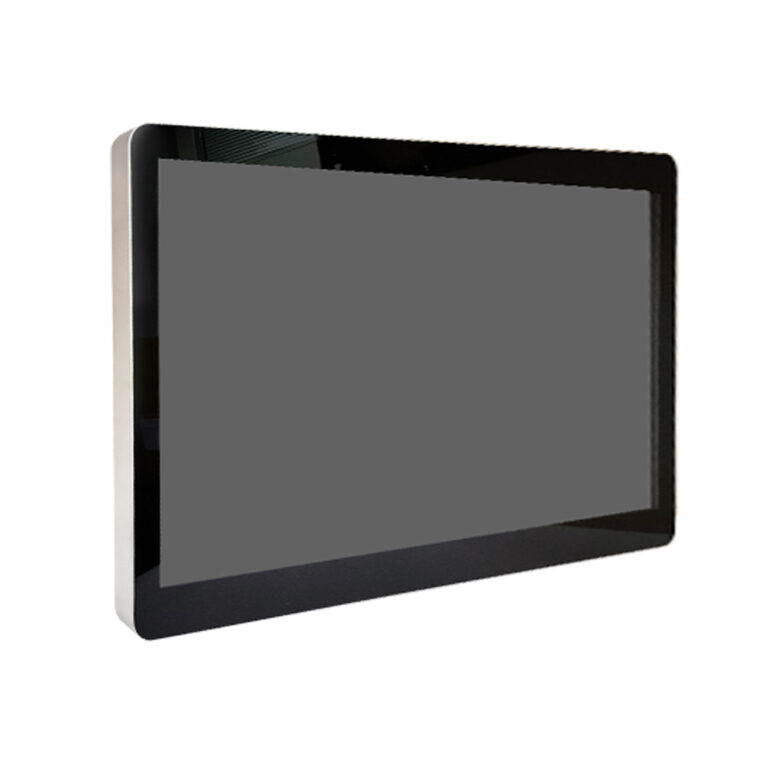

32" 觸控電腦 ( intel Core i3/i5/i7 )
工業平板電腦
產品規格
| Model name | 32" Touch PC ( intel Core i3/i5/i7 ) | |
|---|---|---|
| CPU | Intel® Skylake, Kaby Lake Celeron/Core I series CPU | |
| Memory | DDR4 SO-DIMM x2, Max. 32G | |
| Storage | SATA x1, mSATA/mPCle x1 | |
| GPU Chip | Intel® HD Graphics | |
| Sound Chip | Realtek ALC662 Audio CODEC | |
| Network | Intel Gigabit LAN, 2 * RJ45 ports | |
| Panel Process | VA Mode, Normally Black | |
| Display Size | 32 inch | |
| Visible Area | 698.4×392.9 mm | |
| Resolution | 1920x1080 (FHD) | |
| Color Depth | 16.7M Colors | |
| Brightness (nits) | 500 / (Optional) 1000 / (Optional) 1500 nits | |
| Contrast Ratio | 4000:1 | |
| Display Ratio | 16:9 | |
| Pixel Pitch | 0.3637x0.3637 mm | |
| Response Time | 10 msec. | |
| Viewing Angle | 178°/178° | |
| Backlight | LED (white LED) | |
| min. Panel lifetime | >50000 hours | |
| Operating Temp. | 0°-50°C | |
| Storage Temp. | -20°-60°C | |
| Touch Technology | Projected Capacitive | |
| Allowed Touch Points | 10 points | |
| Thickness of Cover Lens | 2.9±0.2mm | |
| Hardness of Cover Lens | 7H | |
| Accuracy | 99.00% | |
| Transparency | ≥ 87% | |
| IK Ratings | IK07 | |
產品描述
32 吋寬螢幕 工控面板 1920 x1080 (FHD) 解析度
★ VA 廣視角製程 (178°/178°)
★ Intel® Skylake/ Kaby Lake CPU
★ DDR4 8G RAM 最大支援 32G
★ Serial ATAIIIx1, mSATA/mPCIe x1
★ 全平面投射式電容觸控，強化玻璃硬度 7H
★ 10 點 觸控 支援主動式繪圖級觸控筆
★ 金屬外殼，搭配多樣化的安裝支架選項
★ 台灣製造，三年保固，適用各種嚴苛環境
★ 最大亮度可達 2500nits ，適用室外環境(選配)
